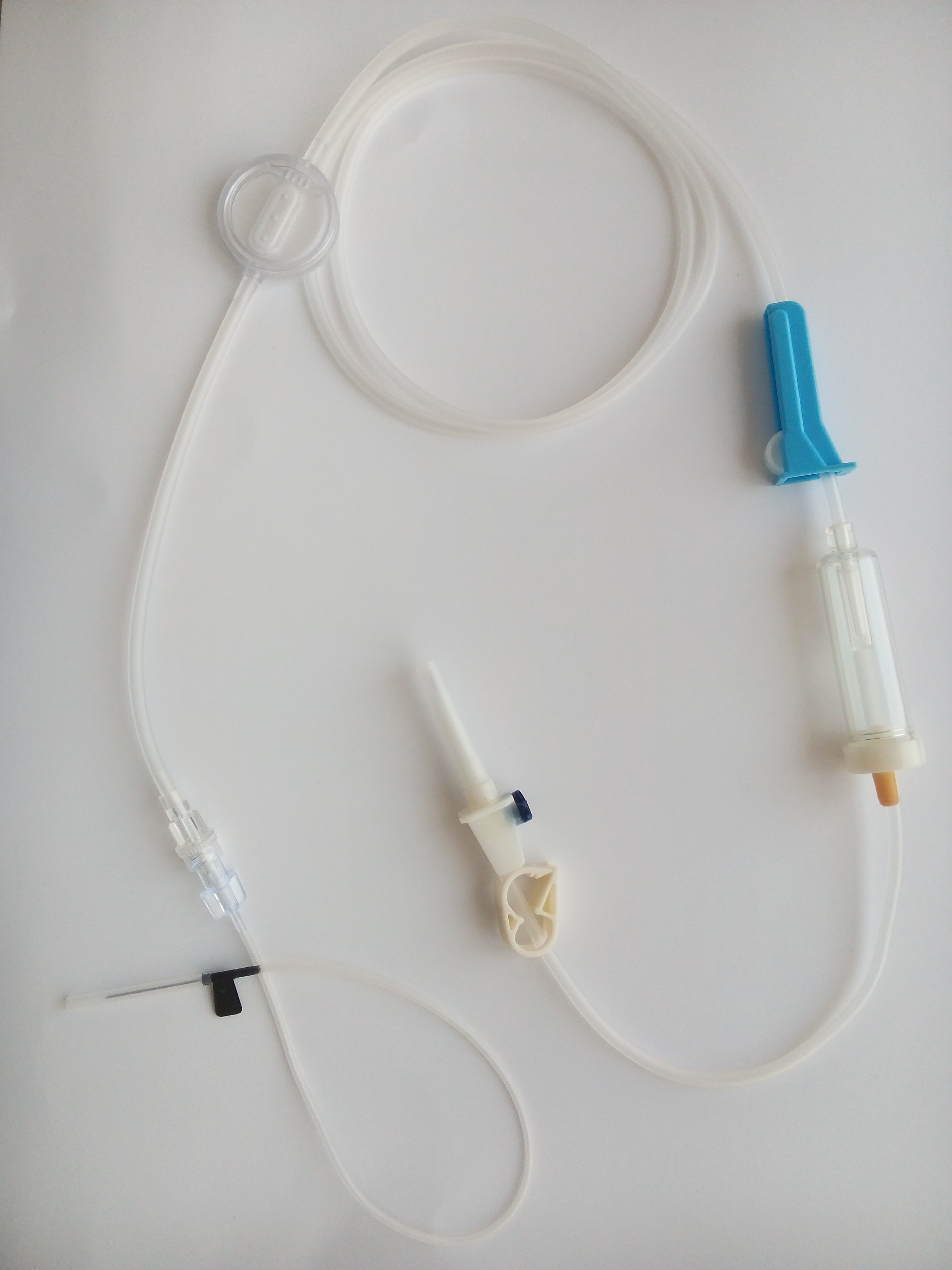

Ultra-filter & auto-stop disposable infusion set

Round synthertic sopike with integrate air-vent and protector
Clear & transparent drip chamber
Adopt precise micro-porous filter membrance to achieve higher filter rate and the high flow rate, not easy block.
Take advantage of air pressure to stop fluid flowing automatically after infusing to ensure the safety of infusing and also reduce the work intensity of nursing staff
Soft ,link resistant & medical grade PVC tube with the flexble length from 1350mm to 2000mm( per customer’s requirement).
PE/ABS flow rate control
Luer lock adapter with hypodermic needle with cap (needle type: 0.45mm,0.5mm,0.55mm,0.6mm,0.7mm,0.8mm,0.9mm)
Steriled by EO gas, non-toxic,non-pyrogenic
For single use only.

Advantage
1.    Automatic exhaust
Automatic exhaust device was added in the drip chamber, which is no need to invert the drip chamber during using, and insert the bottle is enough. The medical liquid will infuse the tube automatically when the medical liquid is less than 1/3.
Reach the goal exhaust automatically, which decrease the pressure of doctor and nurse, increase the safety and efficiency.
2.    Precision filter
The filter film was made of superior material, accelerated flow speed, relieved jam completely. The precision filter has a good compatibility, without drug adsorption. There is no impurity in the downstream of infusion set, and it won’t lead to secondly pollution, ensured the safety. The filter was designed carefully, with a high speed of exhaust, no bubble remains, and won’t lead to leakage.
3.    Superior tube
The tube was made of superior material with good elasticity. So the wall of the tube is smoothly and it is not easy to stay on the wall for bubble. The material is soft and flexible, it has a good performance to meet the requirement of using in the winter.

Air-vented disposable infusion set
ABSS spike with protector, with air-vent.
Clear & transparent blowing mold drip chamber
Soft & kink resistant medical grade PVC tube with the flexible length from 1350mm to 2000mm (per customer’s requirement)
With liquid filter
PE/ABS flow regulator
hypodermic needle with cap (needle type: 0.45mm,0.5mm,0.55mm,0.6mm,0.7mm,0.8mm,0.9mm)
Steriled by EO gas, non-toxic,non-pyrogenic
For single use only.


the specification of injection : A-S,A-G,B-S,B-G
THE SPECIFICATION OF NEEDLE : 0.4MM,0.45MM,0.5MM,0.55MM,0.6MM,0.7MM,0.8MM,0.9MM,1.1MM,1.2MM;
the diameter of precision filter injection are 2um,3um,5um
the protection jacket of puncture, puncture device, air inflow device, water pinchcock, dropper and drop chamber, exhaust device, tube, regulator, injection device, outer taper joint, precision filter, needle
performance
1.disinfect by EO
2.without bacteria,heat source
3.20 drops of distilled water which flow out from the tube is 1 ML(1G+0.1G)
4.the precision filter can filter the particle over 90%
